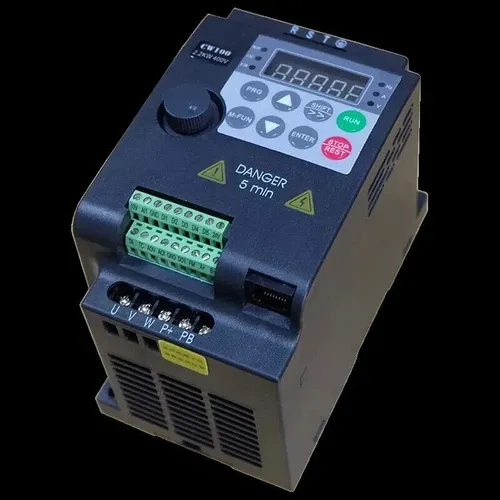

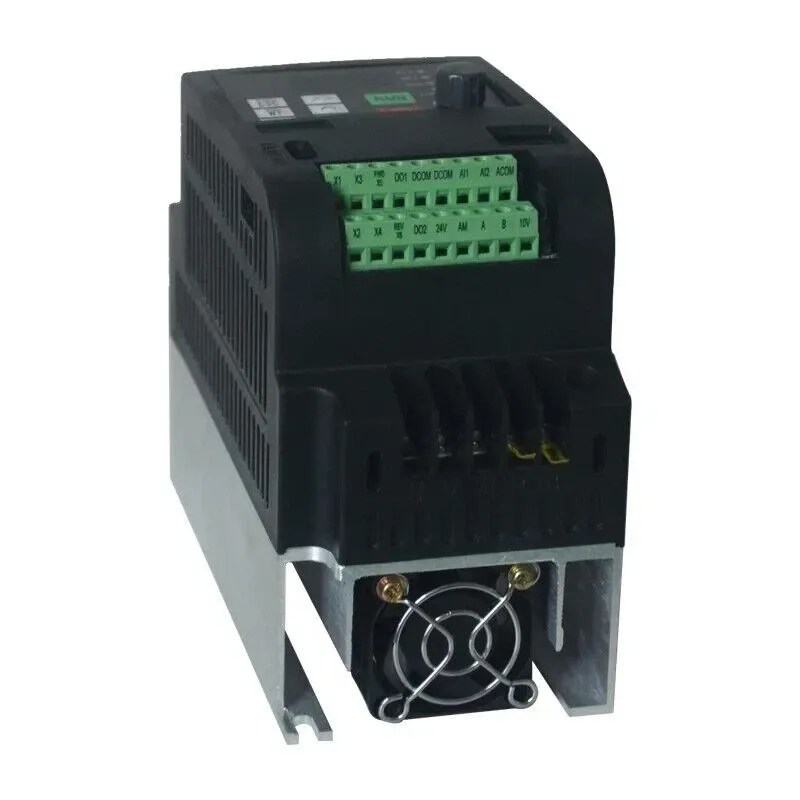

0.75KW VFD Inverter Single Phase 220V Input to Three Phase 380V Output Variable Frequency Drive Converter for AC Motors Phase Converter Speed Controller for Industrial Use

0.75KW – 11KW VFD – 1PH 220V to 3PH 380V Phase Motor Frequency Drive Inverter

• Output Power: 0.75kw/1.5kw/2.2kw/4kw/5.5kw/7.5kw/11kw
• Rated Frequency :50hz/60hz
• Output Frequency Range:0~400Hz
• Input Voltage Range:1 phase 220V±15%
• Output Voltage Range:3 phase 380V±15%
• Control way: Open loop vector control(SVC) V/F control
• Main function: Control and adjust the speed of the ac motor

Feature:

• Humanized keyboard design, convenient operation and clear display
• The motherboard is intelligent and efficient, with full-featured three-proof paint treatment, dust-proof, stable and durable
• Double-layer board design, reasonable structure and safety, greatly reducing the failure rate
• Adopt high-quality industrial flame-retardant ABS plastic shell, heat-resistant, flame-retardant, impact-resistant and good safety
• Good heat dissipation, super large all-aluminum base fan hot plate combined with imported powerful fan, super strong wind and super fast heat dissipation
• Provide up to 25 kinds of fault protection: over-current, over voltage, under voltage, over temperature, phase loss, overload and other protection.

Specification:

Item Type: Variable Frequency Drive

Input Voltage: AC 1PH 220V ± 15% 50Hz-60Hz

Output Voltage: AC 3PH 0V-380V 0Hz-650Hz

Matching Motor Power: 0.75KW/1.5KW/2.2KW/4KW/5.5KW/7.5KW/11KW

Rated Current: 2.5A / 3.7A / 5A / 8.5A / 13A / 16A / 25A

Voltage Type: AC220V to AC380V

Output Voltage Adjustment Mode: PWM control

Control Method: Current vector

Filter: Built-in filter

Protection Level: IP20

Product Function:

Low frequency and large torsion

Sensorless vector control

Standard V / F control

Multi-speed adjustable

Built-in RS485 communication

Application: Crusher, grinder, water pump, textile machine, wood cutter, exhaust fan and blower

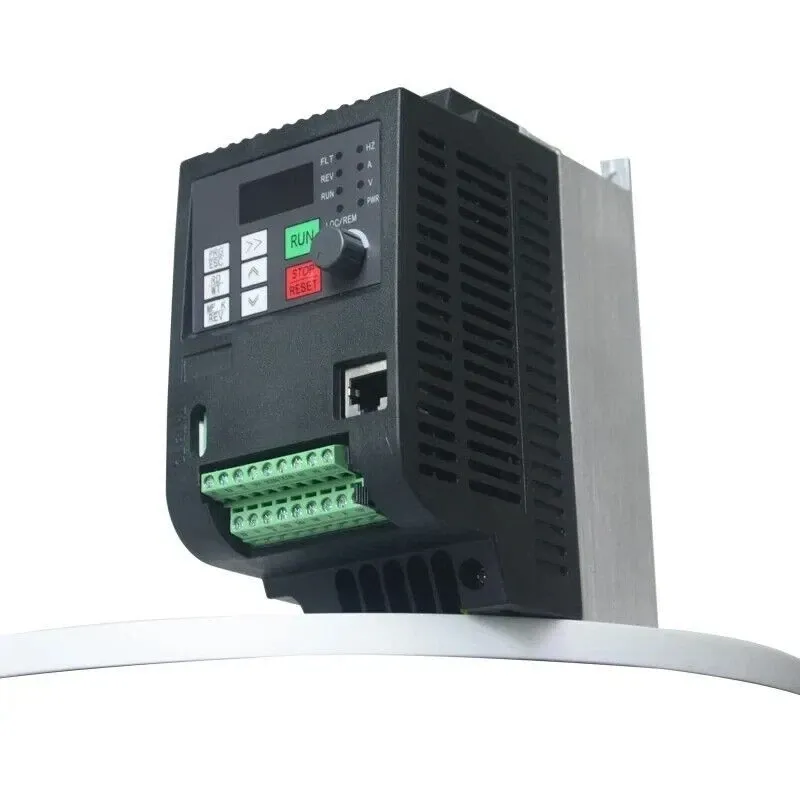

220V to 380V 0.75KW / 1.5KW / 2.2KW Frequency inverter
