12V 5.5W CNC Laser Module with 450nm wavelength delivers precise engraving and cutting, ideal for wood, acrylic, leather, and DIY CNC projects.

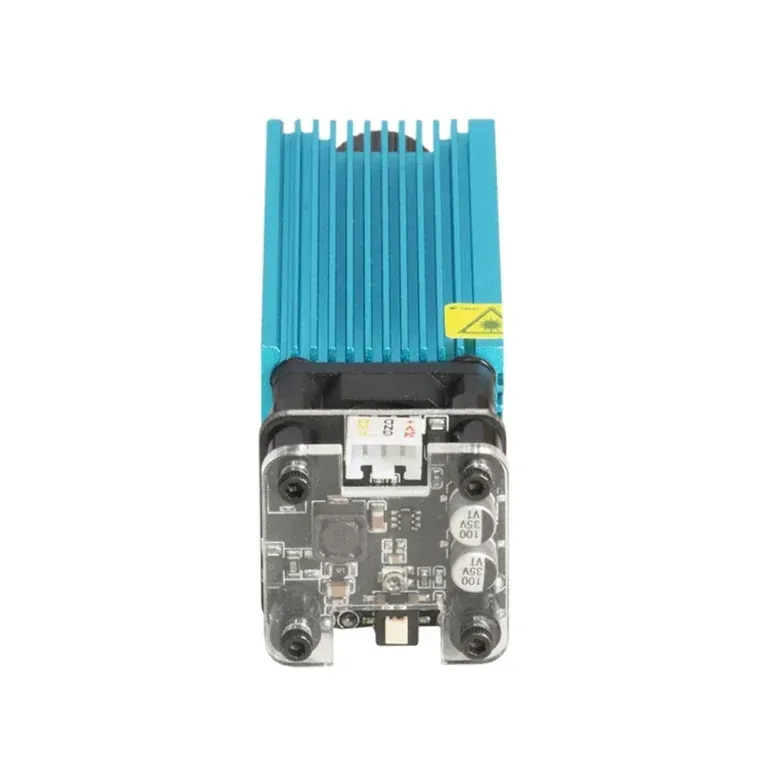

5.5W Blue Laser Engraving Module – 450nm,

Adjustable Focus, with Safety Glasses & Accessories

Unleash precision and creativity with this high-performance 5.5W Blue Laser Module, designed for hobbyists, professionals, and creators. Built with intelligent constant current control and advanced cooling, this laser head delivers exceptional beam quality and reliable performance for engraving, cutting, and etching on various materials, including aluminum.

🔧 Key Features:

🔹 High-Performance Laser Output

• Laser Power: 5.5W (Output) / 22W (Rated Module Power)

• Wavelength: 450nm (Blue Light)

• Electro-Optic Conversion Rate: >25%
  Produces a strong and stable beam, capable of engraving on wood, plastic, leather, cloth, balsa, plywood, and soft metals like aluminum.

🔹 Intelligent Control & Stable Operation
Uses an external constant current drive with intelligent feedback circuitry, ensuring stable output, low noise, and high efficiency for prolonged use.

🔹 Dual Heat Dissipation System
Featuring 4 heat diversion holes, a large aluminum heat sink, and a cooling fan, thermal dissipation is improved by 15–20%, extending the life of the laser and maintaining consistent performance.

🔹 Adjustable Focus Dot
Adjustable focus for precise laser positioning and control, enabling fine detailing for engraving, cutting, scribing, and drilling.

🔹 Universal Compatibility
Works seamlessly with CNC machines like 1610 Pro, 3018, and 3018 Pro. Compatible with PWM/TTL control via a standard 2.54mm 3-pin interface.

📦 Package Includes:

• 1 × Laser Head

• 1 × Power Supply Wire

• 1 × Control Wire

• 1 × Module Test Board

• 1 × Pair of Protective Glasses

• 1 × English User Manual

📐 Specifications:

• Supply Voltage: 12V DC

• Max Working Current: 2.0A

• Rated Module Power: 22W

• Output Power: 5.8W

• Laser Wavelength: 450nm

• Focus Type: Adjustable Dot

• Control Mode: PWM / TTL

• Driving Mode: Built-in ACC Constant Current

• Material:

  • Shell: Aluminum (Anodized Blue)

  • Module: Brass

  • Lens: K9 Optical Glass with High Anti-Reflection Coating

• Cooling Method: Forced Air (Fan + Aluminum Heatsink)

• Weight: 0.34 lbs / 153g

• Size: 3.9 × 1.3 × 1.3 in (9.9 × 3.3 × 3.3 cm)

🚚 Additional Information:

• Condition: Brand New

• Shipping: Nationwide

• Delivery Time: 2–5 Working Days

• Support: Customer satisfaction is our top priority—contact us anytime for assistance.
